Outdoor Die-cast Aluminum Fixed Installation LED Display with IP65 Waterproof, 220W/m² Energy Efficiency, and 6500 CD/m² Brightness
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Charming |
| Chứng nhận: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Số mô hình: | P6.6 P8 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 2 chiếc |
|---|---|
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Vỏ carton, Vỏ gỗ, Vỏ máy bay |
| Thời gian giao hàng: | 10 ngày làm việc sau khi thanh toán |
| Điều khoản thanh toán: | L/C, T/T, Liên minh phương Tây, PayPal, tiền mặt |
| Khả năng cung cấp: | 500 chiếc mỗi tuần |
|
Thông tin chi tiết |
|||
| Kích thước mô-đun: | 480*320mm | Kích thước tủ: | 960*960*77mm |
|---|---|---|---|
| Trọng lượng tủ: | 25kg | Xếp hạng IP: | IP65 |
| Cường độ sáng: | >6500 CD/m2 | Góc nhìn (HM): | 140° |
| Thang màu xám: | 14 bit | Nhiệt độ hoạt động: | -20°C~+50°C |
Mô tả sản phẩm

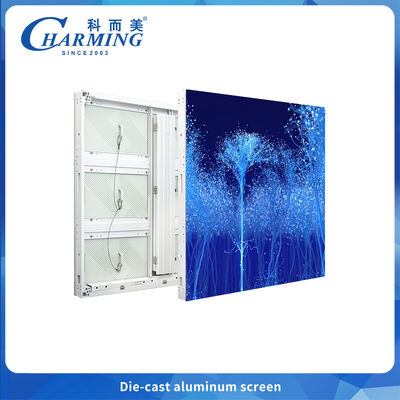

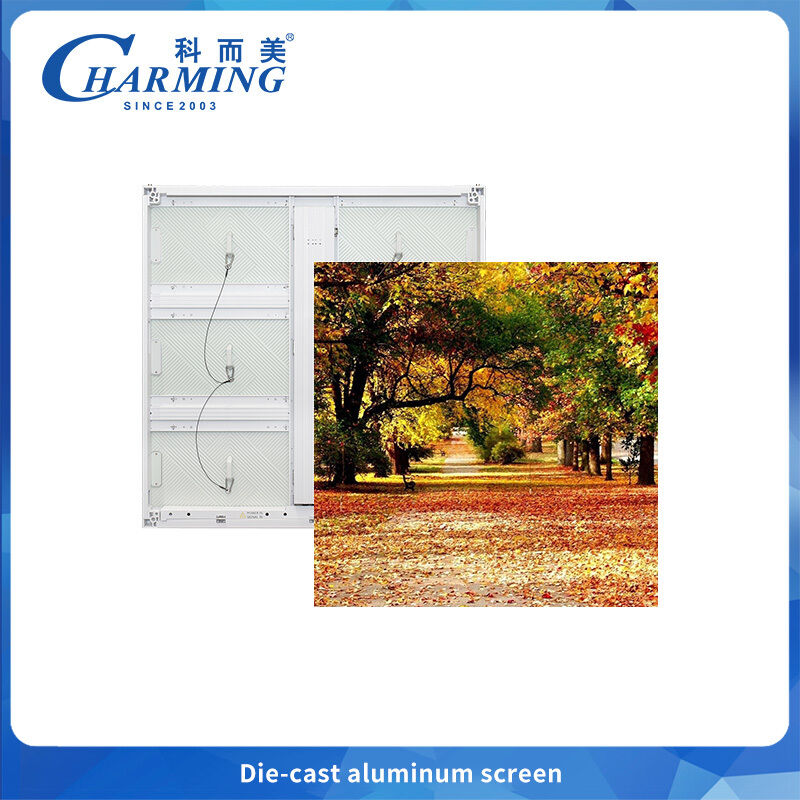

Outdoor Die-cast Aluminum Fixed Installation LED Display Screen
Product Features
High Security
- All-aluminum bottom shell construction
- High ignition point with superior fire resistance
- Passes TUV 5VB fire resistance test
High Stability
- Hard connection design (no internal cables)
- Ultra-stable and extremely safe operation
- Split-voltage power supply: low heat generation, extended lifespan
High Performance
- Brightness up to > 6500 CD/m²
- Capable of 10,000-level brightness display
- Refresh rate ≥3840Hz with 14-bit grayscale
High Waterproof Protection (IP65)
- Original design waterproof rubber ring
- Multi-layer waterproof barrier system
- Suitable for outdoor naked installation - no edging required
High Convenience
- Full front maintenance or full rear maintenance options
- Saves installation space
- Hidden wiring - aesthetically pleasing and durable
Lightweight & Thin Design
- Weight as low as 25 kg per cabinet (~30kg/m²)
- Thickness as thin as 77mm (95mm with power box)
High Contrast
- High mask precision with low tolerance
- No module phenomenon (no visible gaps)
Energy Saving
- Dual voltage power supply driving mode
- Maximum power consumption: only 650W/m²
- Average power: 220W/m²
Product Parameters
| Parameter | P6.6 | P8 |
|---|---|---|
| Pixel Pitch | 6.6mm | 8mm |
| LED Configuration | SMD2727 | SMD2727 |
| Pixel Density | 22500 dot/m² | 15625 dot/m² |
| Module Size | 480×320mm | |
| Module Resolution | 72×48dot | 60×40 dot |
| Cabinet Size | 960×960×77mm | |
| Cabinet Resolution | 144×144 dot | 120×120 dot |
| Cabinet Weight | 25KG | |
| IP Rating (front/back) | IP65 | |
| Brightness Intensity | 140°/140° | |
Installation Details
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the boxes
- Identify power and signal cables, then insert them into the corresponding box connections
- Connect the main signal and power cables to the computer and controller, then debug the screen for successful operation
Package Details
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
