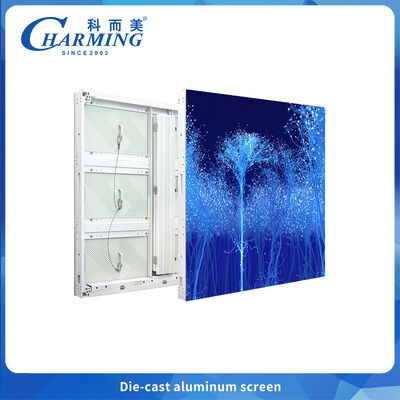

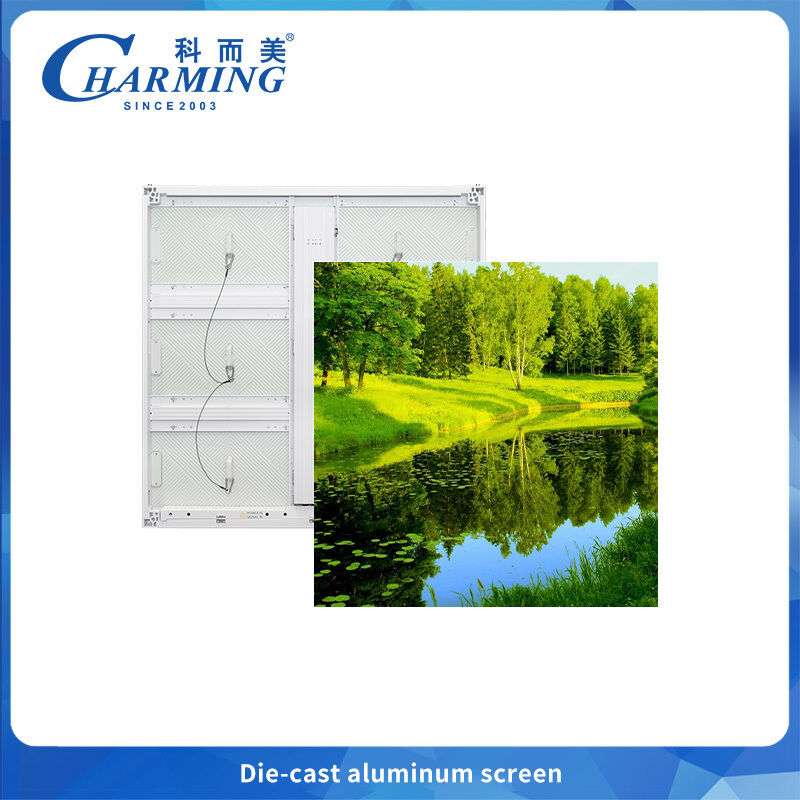

High Brightness P6.66 Pantallas Modulare SMD Full Color Outdoor Indoor Church Led Panel Display DJ Led Screen
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Charmingled |
| Chứng nhận: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Số mô hình: | P6.66 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Hộp đựng thùng carton, vỏ gỗ, vỏ chuyến bay |
| Thời gian giao hàng: | 30 ngày làm việc sau khi thanh toán |
| Điều khoản thanh toán: | L/C,T/T,Western Union,Paypel,Tiền mặt |
| Khả năng cung cấp: | 10000 PC mỗi tuần |
|
Thông tin chi tiết |
|||
| kích thước tủ: | 960*960*77mm | Độ phân giải nội các: | 144*144 chấm |
|---|---|---|---|
| Trọng lượng tủ: | 25kg | Xếp hạng IP (trước / sau): | IP65 |
| Cường độ sáng: | >6500 CD/m2 | Góc xem (H/V): | 140 °/140 ° |
| Làm nổi bật: | P6.66 LED video wall display,Outdoor indoor LED panel display,Full color SMD DJ screen |
||
Mô tả sản phẩm
High Brightness P6.66 Pantallas Modulare SMD Full Color Outdoor Indoor Church Led Panel Display DJ Led Screen
Product Advantages:
- Superior Protection
- IP65 waterproof rating, special rubber ring and all-aluminum fireproof base design, fearless of wind and rain, eliminating potential hazards.
- Stable and Energy-Saving
- All-aluminum textured heat dissipation, voltage divider power supply, maximum power consumption only 650W/㎡, stable operation and lower energy consumption.
- High Brightness Display
- Tens of thousands of brightness (>6500cd/㎡), clear picture and rich colors even under direct sunlight.
- Easy Installation
- Front and rear maintenance, slim cabinet (thinnest 77mm), concealed wiring, saving significant installation and transportation costs.
- Pure Image Quality
- Innovative mask design effectively improves contrast, eliminates modularity, and delivers excellent detail.
- Flexible Applications
- Supports curved corner splicing to achieve 3D display effects, suitable for various scenarios such as advertising, sports, and commercial centers.
Product Parameters
| Parameters | P6.66 |
|---|---|
| LED Configuration | SMD2727 |
| Pixel Density (Dot/m²) | 22500 |
| Module Size | 480×320mm |
| Cabinet Size | 960×960×77mm |
| Cabinet Weight | 25kg |
| Protection Level (Front/Rear) | IP65 |
| Brightness | ≥5500 cd/m² |
Company Introduction
Charming Co., Ltd. is dedicated to technological innovation and global service in the entertainment lighting and LED industry.
In 2003, the company pioneered the introduction of LED displays into entertainment applications and has since remained at the forefront of this field. Today, it is recognized as the leading customer-satisfaction brand for entertainment lighting LED products in China.
With nearly 100 patents to its name, the company holds multiple certifications including ISO9001, CE, CCC, CB, ROHS, and SASO.
Guided by the corporate philosophy “Charming Achieve Beauty,” Charming operates an internationally standardized, fully automated LED display production line within a factory spanning over 10,000 square meters. For 22 years, we have delivered high-quality products and services to customers across more than 150 countries and regions.
Quality Assurance & Support
✅ 2-Year Full Warranty – Free replacement or repair for any defective displays, modules, or parts.
✅ Lifetime Maintenance – Only material costs apply after the warranty period.
✅ Free Technical Training – Includes hands-on operation & maintenance training at our factory.
✅ Comprehensive Documentation – Operation manuals, software, test reports, CAD drawings, and expert guidance provided.
Your success is our priority—let’s build something brilliant together!
Provide
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We provide the operation manual, software, test report and so on.
3. We can also provide all kinds of certification such as CE, UL and so on
FAQ:
1:Can I order LED screen samples?
Yes, we welcome orders for both LED modules and complete screens for quality evaluation.
2: What is the delivery time?
LED modules: 1–5 days.
Complete screens under 100㎡: within 15 working days.
3: What is the warranty policy?
All products come with a 1-year warranty.
4: Do you offer after-sales service?
Yes, we provide dedicated technical support via a professional team, a service hotline, and 24/7 online assistance.
5: Are custom sizes available?
Customization is possible based on module and cabinet dimensions.
6: Do you provide installation guidance?
Yes, we offer detailed installation drawings and remote support via TeamViewer.
7: How do I place an order?
Please provide your required screen size and application scenario for a tailored solution.
8: What shipping methods are available?
We support both air and sea freight, with sea freight recommended for its cost efficiency.
9: What payment options do you accept?
We accept TT and Western Union. For secure transactions, we recommend using Ali Trade Assurance.
