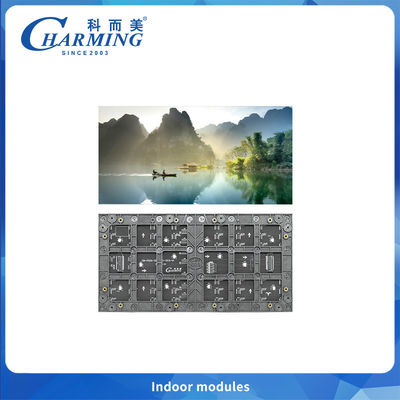

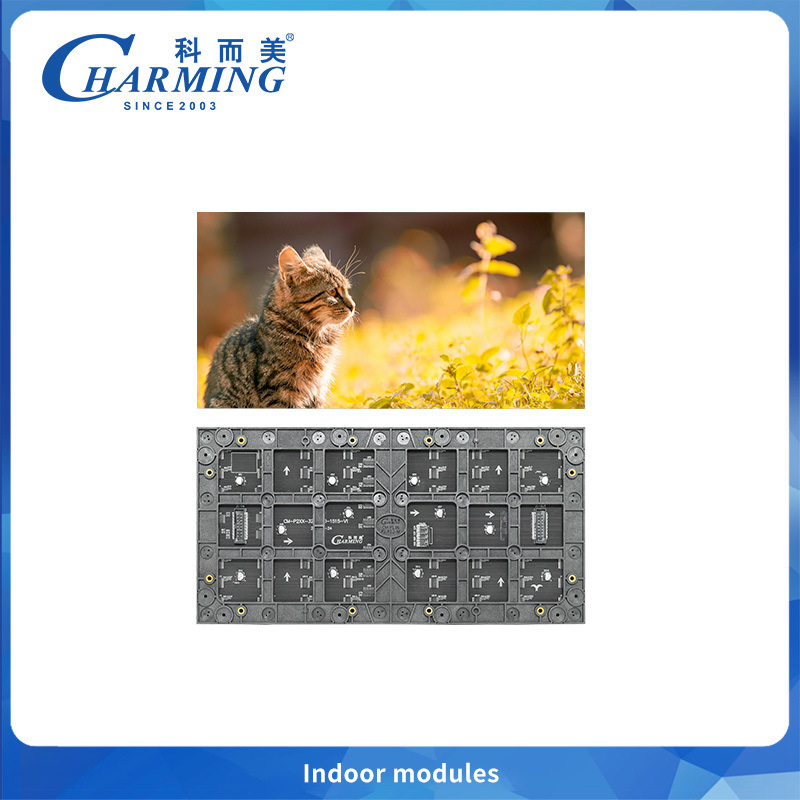

Pantalla Led Indoor Advertising Led Display Screen Panel Concert Stage Backdrop Led Video Wall P1.5 P2
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | dây chuyền |
| Hàng hiệu: | Charmingled |
| Chứng nhận: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Số mô hình: | P1.86 P2 P2.22 P2.5 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 150 PC |
|---|---|
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Hộp đựng thùng carton, vỏ gỗ, vỏ chuyến bay |
| Thời gian giao hàng: | 30 ngày làm việc sau khi thanh toán |
| Điều khoản thanh toán: | L/C, T/T, Liên minh phương Tây, PayPal, tiền mặt |
| Khả năng cung cấp: | 1000 chiếc mỗi tuần |
|
Thông tin chi tiết |
|||
| Tuổi thọ: | ≥50000 giờ | Mức màu xám: | 14-16 bit |
|---|---|---|---|
| Tỷ lệ làm mới (Hz): | 7680Hz/3840Hz/1920Hz | Nhiệt độ làm việc: | -20 ~ 50 ° C. |
| Độ ẩm làm việc: | 10%~ 90%rh | Điện áp làm việc: | DC 5V |
| Làm nổi bật: | P1.5 LED video wall panel,indoor advertising LED display,concert stage backdrop screen |
||
Mô tả sản phẩm
Pantalla Led Indoor Advertising Led Display Screen Panel Concert Stage Backdrop Led Video Wall P1.5 P2
High Definition Small Pitch LED for Large Screen Advertising & Conference Applications
Charming Co., Ltd. has built a reputation as a trusted partner in entertainment lighting and LED solutions through continuous innovation and client-focused service.
Our journey of innovation started in 2003 with the groundbreaking introduction of LED displays to entertainment venues. This milestone marked the beginning of our ongoing leadership, culminating in our recognition as a leading brand in China.
We back our products with substantial R&D investment, evidenced by nearly 100 patents, and adhere to strict quality standards verified by ISO9001, CE, CCC, CB, ROHS, and SASO certifications.
Operating from a modern 10,000+ sqm factory with fully automated lines, we embody "Charming Achieve Beauty" in every product. Our 22-year track record includes successful deliveries to a worldwide network spanning over 150 countries and regions.
Technical Specifications
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number | SP2 | SP2.22 | SP2.5 | SP3 | SP4 | SP4 |
| Dimension (MM) | 320x160 | 320x160 | 320x160 | 192x192 | 256x128 | 256x256 |
| Pixel Pitch (MM) | 2 | 2.22 | 2.5 | 3 | 4 | 4 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Scan Mode | 1/40 Scan | 1/36 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan |
| Pixel Density (Dot/m²) | 250000 | 202500 | 160000 | 111111 | 62500 | 62500 |
| Module Max.Power (W) | 22 | 20 | 24 | 10 | 5 | 10 |
| Best Viewing Distance (M) | ≥2.5 | ≥2.5 | ≥2.5 | ≥3 | ≥4 | ≥4 |
| Refresh Rate (Hz) | 7680 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 |
| Brightness (CD/m²) | 800 | ≥700 | ≥800 | ≥600 | ≥400 | ≥400 |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| Protection Level | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 |
| Grey Level | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Working Temperature | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ |
| Working Humidity | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
Warranty & Support
Comprehensive 2-Year Protection
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
After-Sales Service Package
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
Frequently Asked Questions
Can I order samples for testing?
Yes, we welcome sample orders to test and check quality for both LED modules and complete screens.
What is the delivery time?
LED modules: 1-5 days. Complete screens (under 100m²): within 15 working days.
What warranty do you offer?
We provide a 2-year comprehensive warranty for all products.
How is the after-sales service?
Our professional team provides 24-hour online support with dedicated hotlines for complaints and feedback.
Can we customize display sizes?
Display sizes are determined by module and cabinet dimensions for optimal performance.
How to install the LED display?
We provide detailed CAD drawings or remote TeamViewer support for installation.
What shipping methods are available?
We recommend sea freight for cost efficiency, though air shipping is also available.
What payment methods do you accept?
We accept TT, Western Union, and recommend Ali Trade Assurance for secure transactions.
