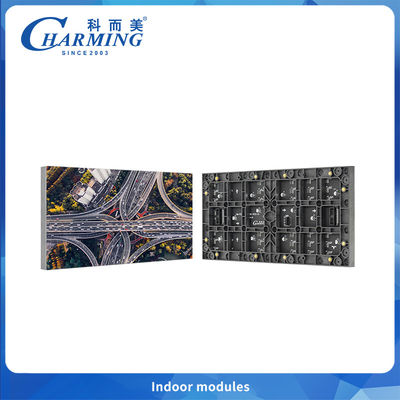

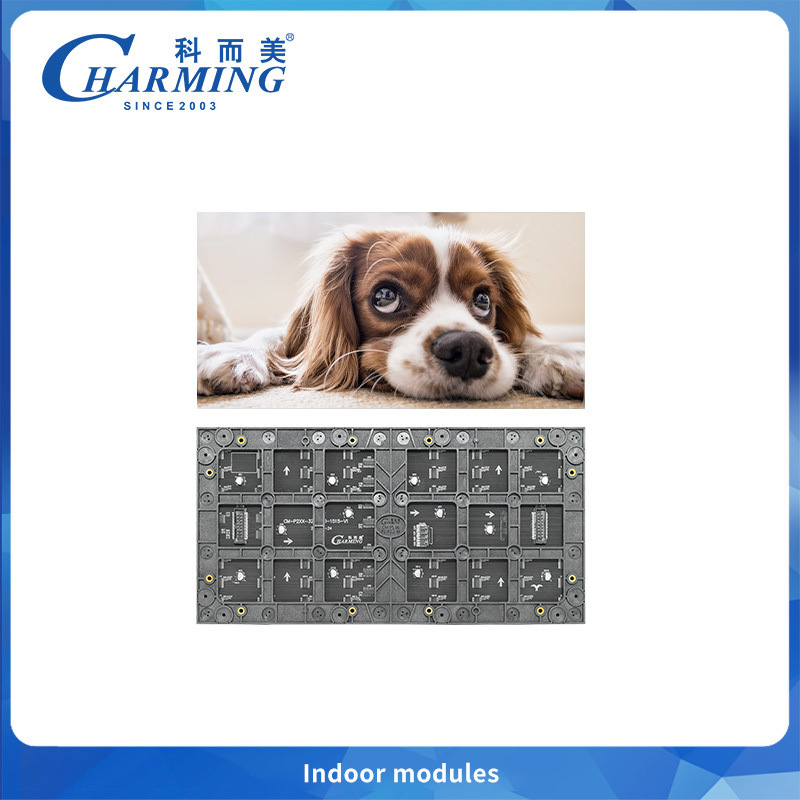

Full Color 4k SMD HD Small Pitch P1.86 Fixed LED Display Video Wall Church Pantalla Modular LED Display
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | dây chuyền |
| Hàng hiệu: | Charmingled |
| Chứng nhận: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Số mô hình: | P1.86 P2 P2.22 P2.5 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 10 PC |
|---|---|
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Hộp đựng thùng carton, vỏ gỗ, vỏ chuyến bay |
| Thời gian giao hàng: | 30 ngày làm việc sau khi thanh toán |
| Điều khoản thanh toán: | L/C, T/T, Liên minh phương Tây, PayPal, tiền mặt |
| Khả năng cung cấp: | 100000 chiếc mỗi tuần |
|
Thông tin chi tiết |
|||
| Tuổi thọ: | ≥50000 giờ | Mức màu xám: | 14-16 bit |
|---|---|---|---|
| Tỷ lệ làm mới (Hz): | 7680Hz/3840Hz/1920Hz | Nhiệt độ làm việc: | -20 ~ 50 ° C. |
| Độ ẩm làm việc: | 10%~ 90%rh | Điện áp làm việc: | DC 5V |
| Làm nổi bật: | 4K SMD HD LED video wall,P1.86 small pitch LED display,modular church LED display |
||
Mô tả sản phẩm
- Innovative P2 small pitch technology for superior image quality
- ISO9001, CE, CCC, CB, ROHS, and SASO certified manufacturing
- 10,000+ sqm automated production facility
- Products serving 150+ countries worldwide
- Nearly 100 patented technologies
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number | SP2 | SP2.22 | SP2.5 | SP3 | SP4 | SP4 |
| Dimension (MM) | 320x160 | 320x160 | 320x160 | 192x192 | 256x128 | 256x256 |
| Pixel Pitch (MM) | 2 | 2.22 | 2.5 | 3 | 4 | 4 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Scan Mode | 1/40 Scan | 1/36 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan |
| Pixel Density (Dot/m²) | 250000 | 202500 | 160000 | 111111 | 62500 | 62500 |
| Module Max.Power (W) | 22 | 20 | 24 | 10 | 5 | 10 |
| Best Viewing Distance (M) | ≥2.5 | ≥2.5 | ≥2.5 | ≥3 | ≥4 | ≥4 |
| Refresh Rate (Hz) | 7680 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 |
| Brightness (CD/m²) | 800 | ≥700 | ≥800 | ≥600 | ≥400 | ≥400 |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| Protection Level | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 |
| Grey Level | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Working Temperature | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ |
| Working Humidity | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
Can I order samples for testing?
Yes, we welcome sample orders for both LED modules and complete screens so you can evaluate quality firsthand.
What is the delivery time?
LED modules: 1–5 days
Complete screens (<100m²): within 15 working days
What warranty do you offer?
All products come with a comprehensive 2-year warranty.
How is the after-sales service?
We offer 24/7 online support with dedicated hotlines to promptly handle feedback and technical issues.
Can we customize display sizes?
Display sizes are customized based on standard module and cabinet dimensions to ensure structural and performance integrity.
How do we install the display?
We provide detailed CAD drawings and remote installation guidance via TeamViewer.
What shipping methods are available?
Sea freight is recommended for cost efficiency, while air shipping is available for urgent needs.
What payment methods are accepted?
We accept T/T and Western Union, and highly recommend Ali Trade Assurance for transaction security.
